Ternary lithium cells Pouch and prismatic formats for your battery project. Share your selected capacity and application to confirm the supplied specifications.

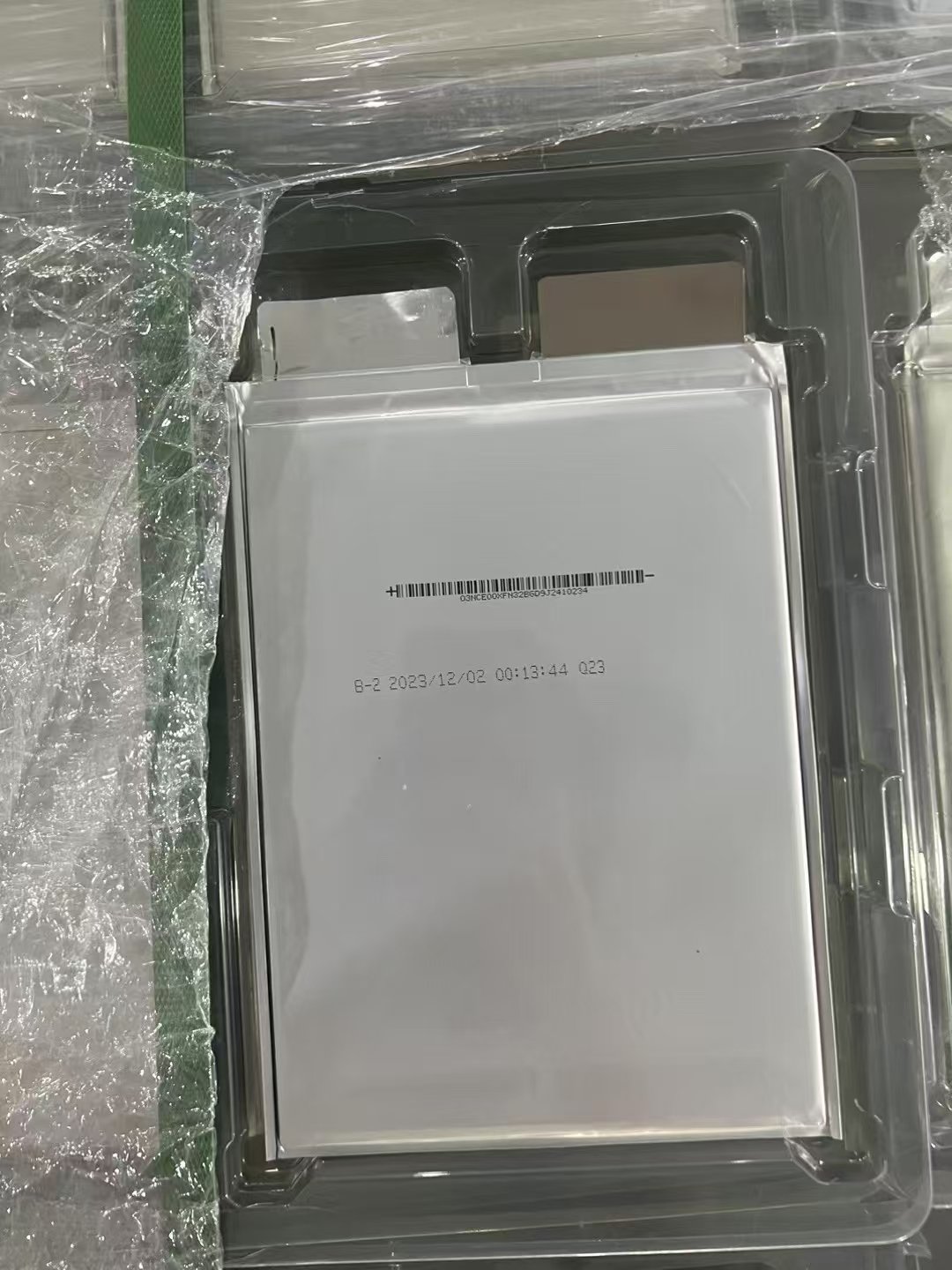

LiFePO4 cells Ternary lithium cells Sodium-ion cells Pouch cells Series appearance reference · Supplied revision confirmed with the order. POUCH FORMAT 32Ah / P32 series pouch cell Ternary lithium Capacity · C/3, 25°C 33.3AhC/3 · 25°C Dimensions · L × W × H 231 × 160 × 6.05 mm Weight 498 ± 15 g Model reference P32 Catalogue edition 2025 Series parameters follow the indicated catalogue edition. The image is an appearance reference; confirm the supplied revision before ordering.

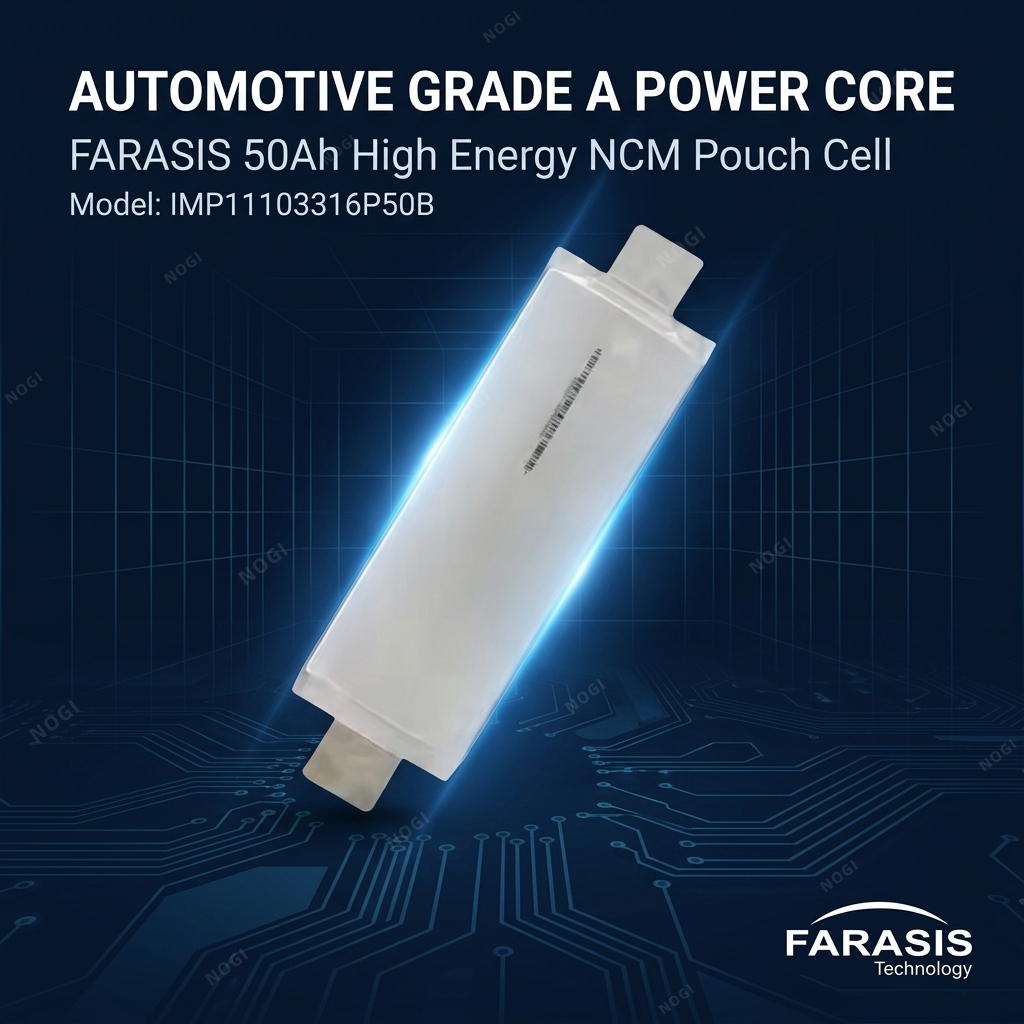

Confirm voltage & request quote Series appearance reference · Supplied revision confirmed with the order. POUCH FORMAT P50 series pouch cell Ternary lithium Capacity · C/3, 25°C 52AhC/3 · 25°C Dimensions · L × W × H 316 × 103 × 10.52 mm Weight 741 ± 15 g Model reference P50 Catalogue edition 2025 Series parameters follow the indicated catalogue edition. The image is an appearance reference; confirm the supplied revision before ordering.

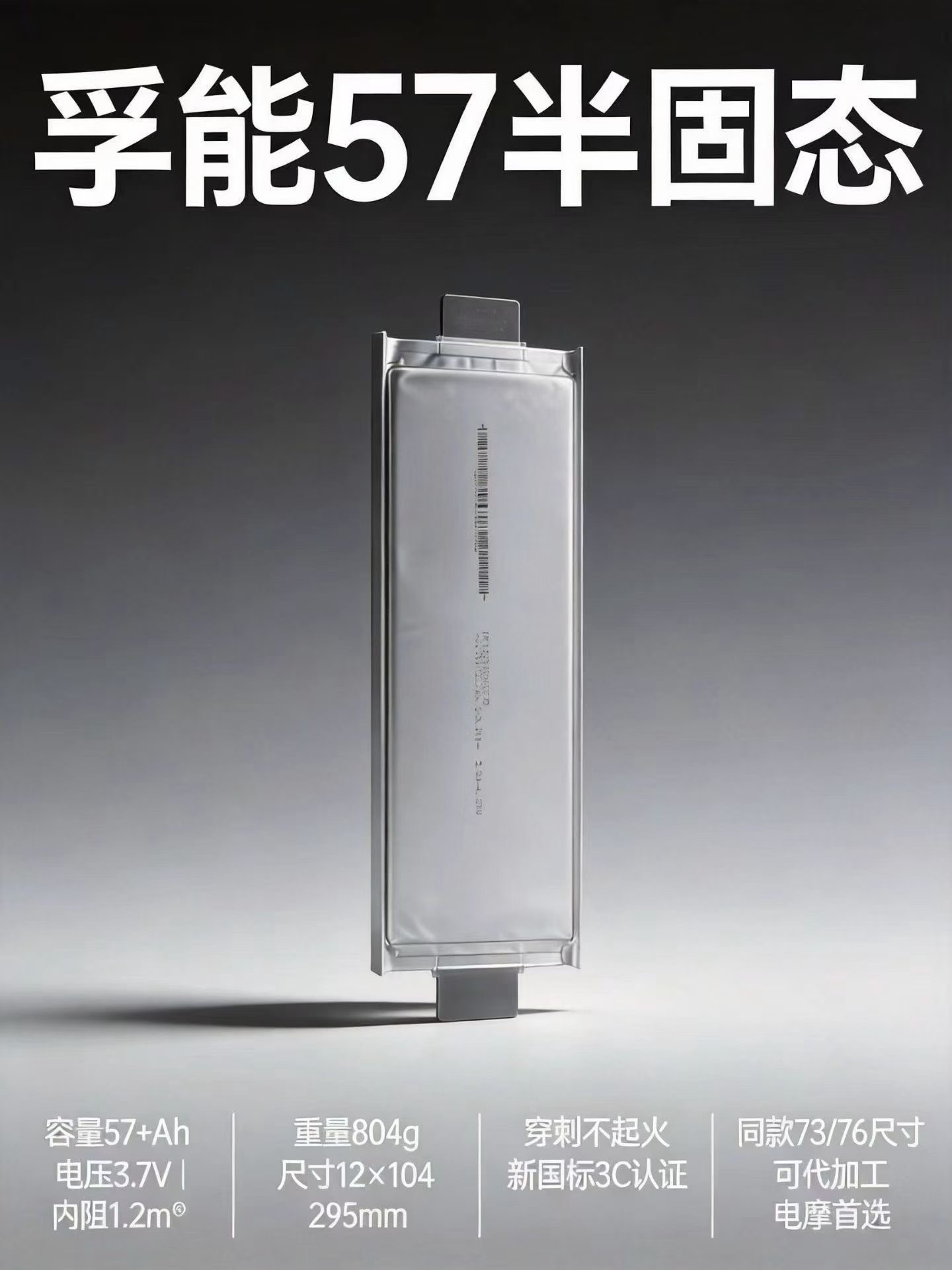

Confirm voltage & request quote Product appearance reference POUCH FORMAT 57+Ah pouch cell Semi-solid-state · supply specification Capacity reference 57+Ah Voltage 3.7 V Dimensions · source order 12 × 104 × 295 mm Weight 804 g The “+” capacity designation follows supply information. Confirm rated capacity and the supplied semi-solid-state specification when requesting a quote.

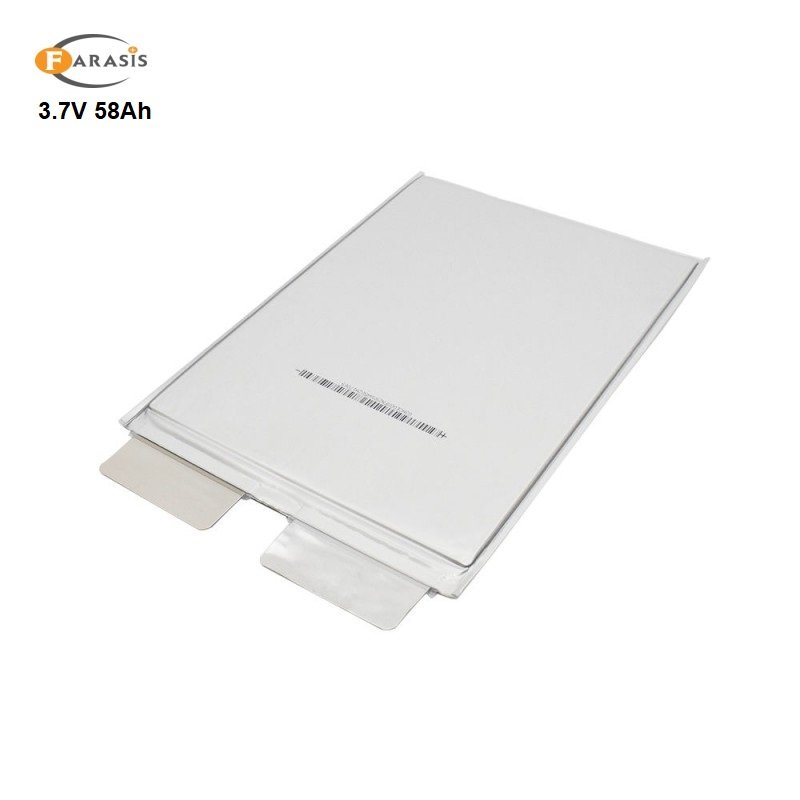

Request quote & specifications Series appearance reference · Supplied revision confirmed with the order. POUCH FORMAT P58 series pouch cell Ternary lithium Capacity · C/3, 25°C 60.5AhC/3 · 25°C Dimensions · L × W × H 161 × 231 × 10 mm Weight 833 ± 15 g Model reference P58 Catalogue edition 2025 Series parameters follow the indicated catalogue edition. The image is an appearance reference; confirm the supplied revision before ordering.

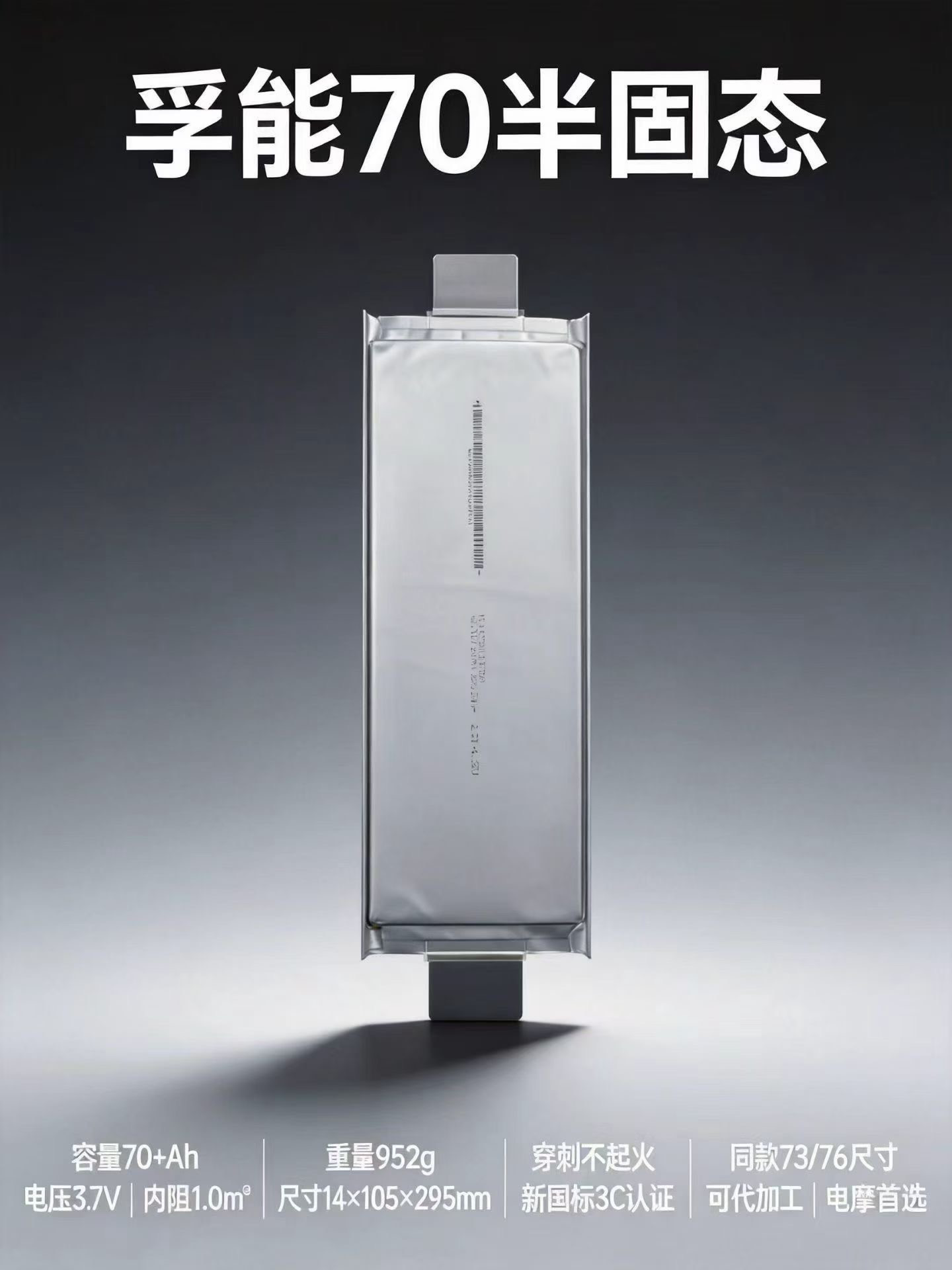

Confirm voltage & request quote Product appearance reference POUCH FORMAT 70+Ah pouch cell Semi-solid-state · supply specification Capacity reference 70+Ah Voltage 3.7 V Dimensions · source order 14 × 105 × 295 mm Weight 952 g The “+” capacity designation follows supply information. Confirm rated capacity and the supplied semi-solid-state specification when requesting a quote.

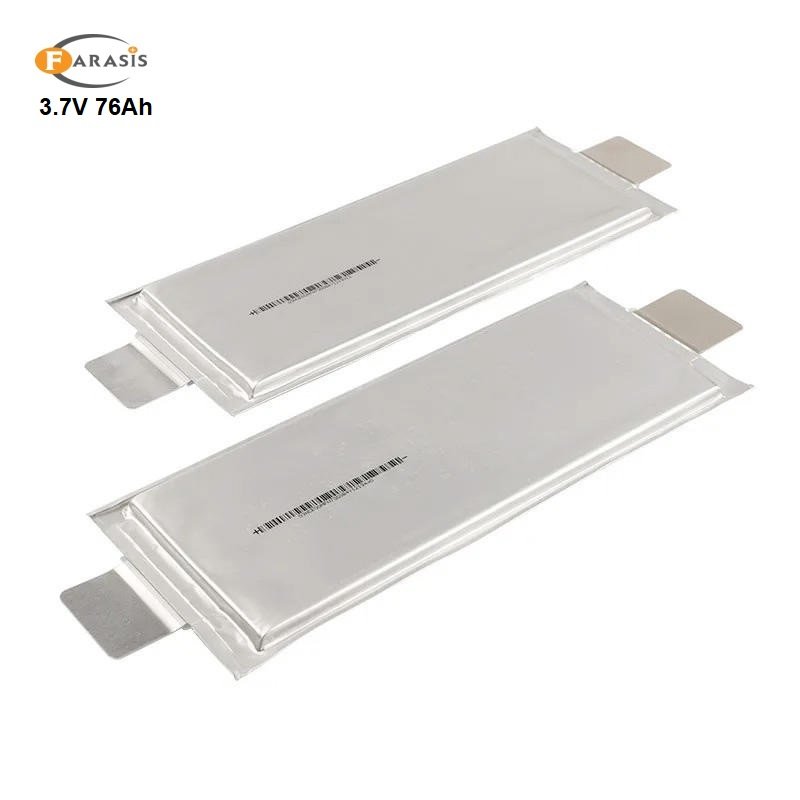

Request quote & specifications Series appearance reference · Supplied revision confirmed with the order. POUCH FORMAT P76 series pouch cell Ternary lithium Capacity · C/3, 25°C 76.3AhC/3 · 25°C Nominal voltage · C/3, 25°C 3.65 V Dimensions · L × W × H 294.4 × 105.5 × 14.45 mm Weight 971.5 ± 15 g Model reference P76 Catalogue edition 2026 Series parameters follow the indicated catalogue edition. The image is an appearance reference; confirm the supplied revision before ordering.

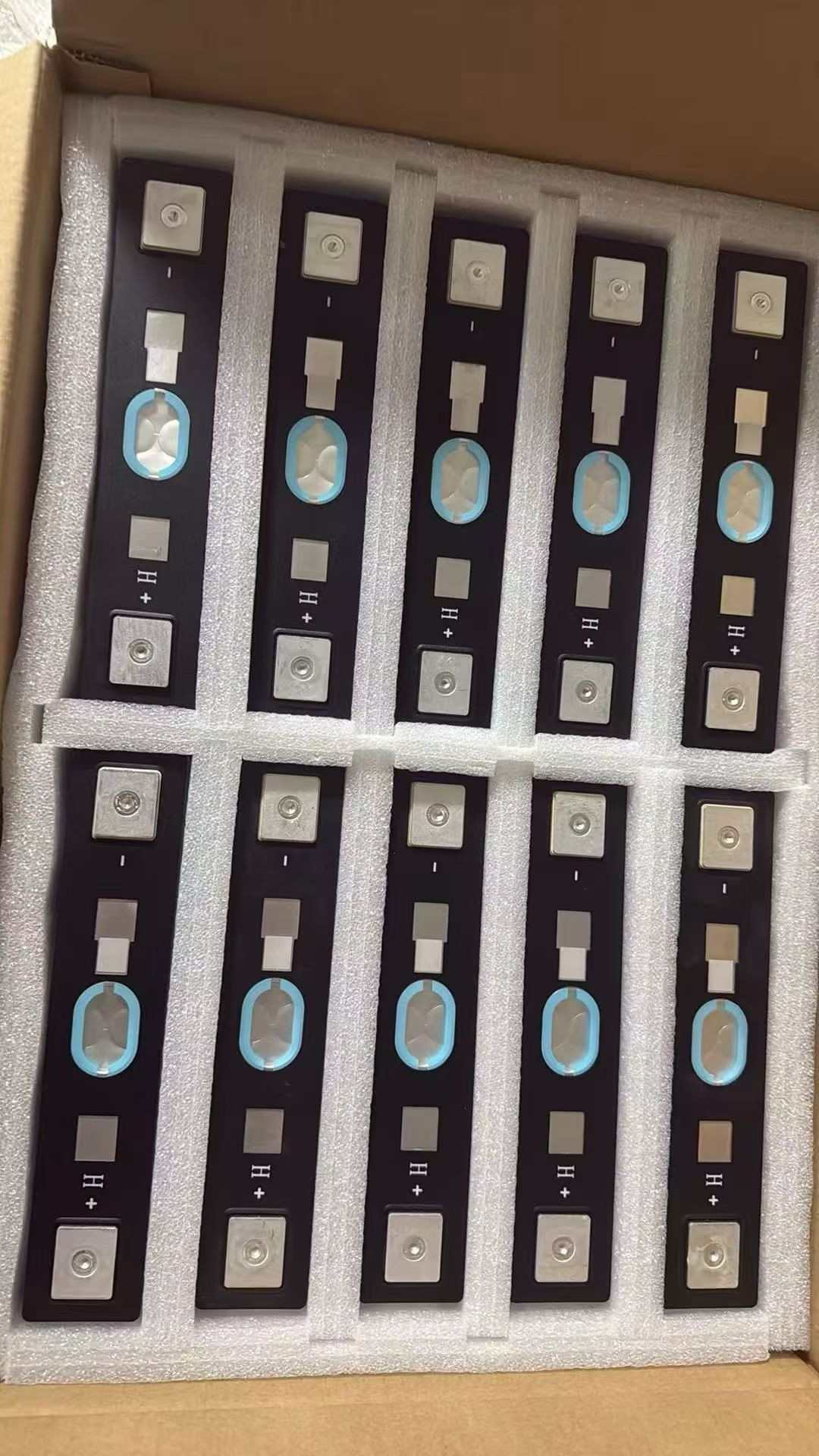

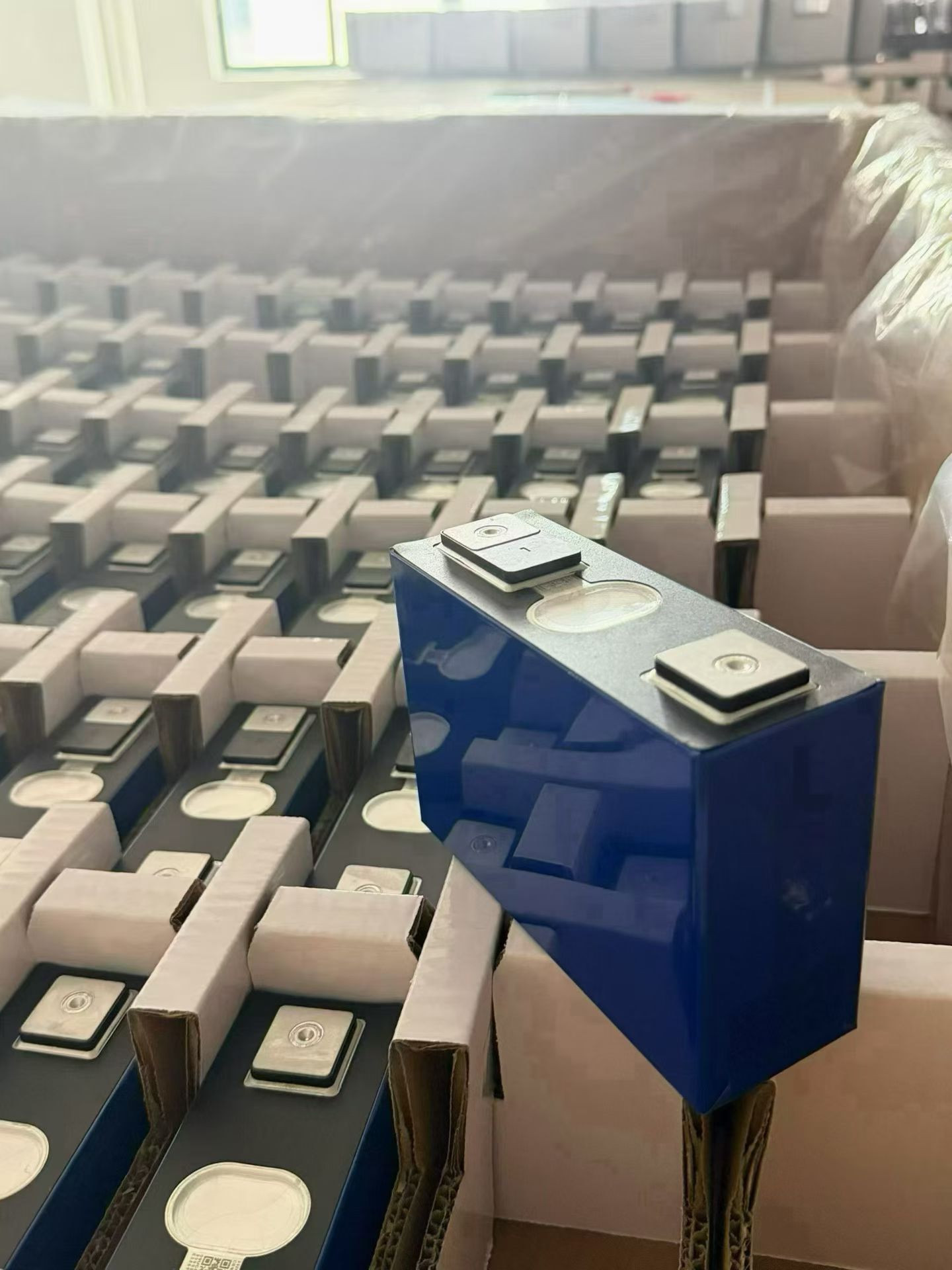

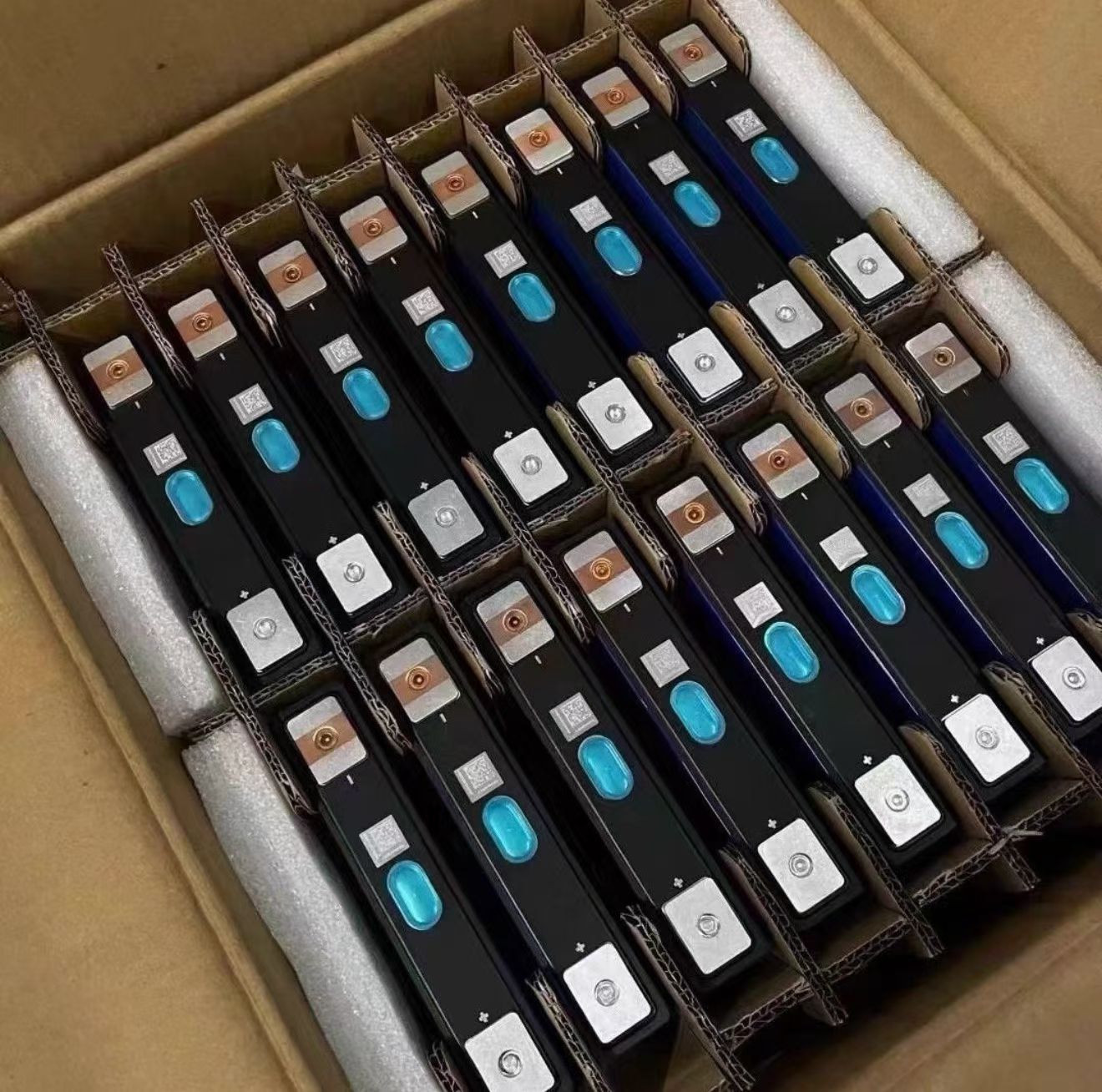

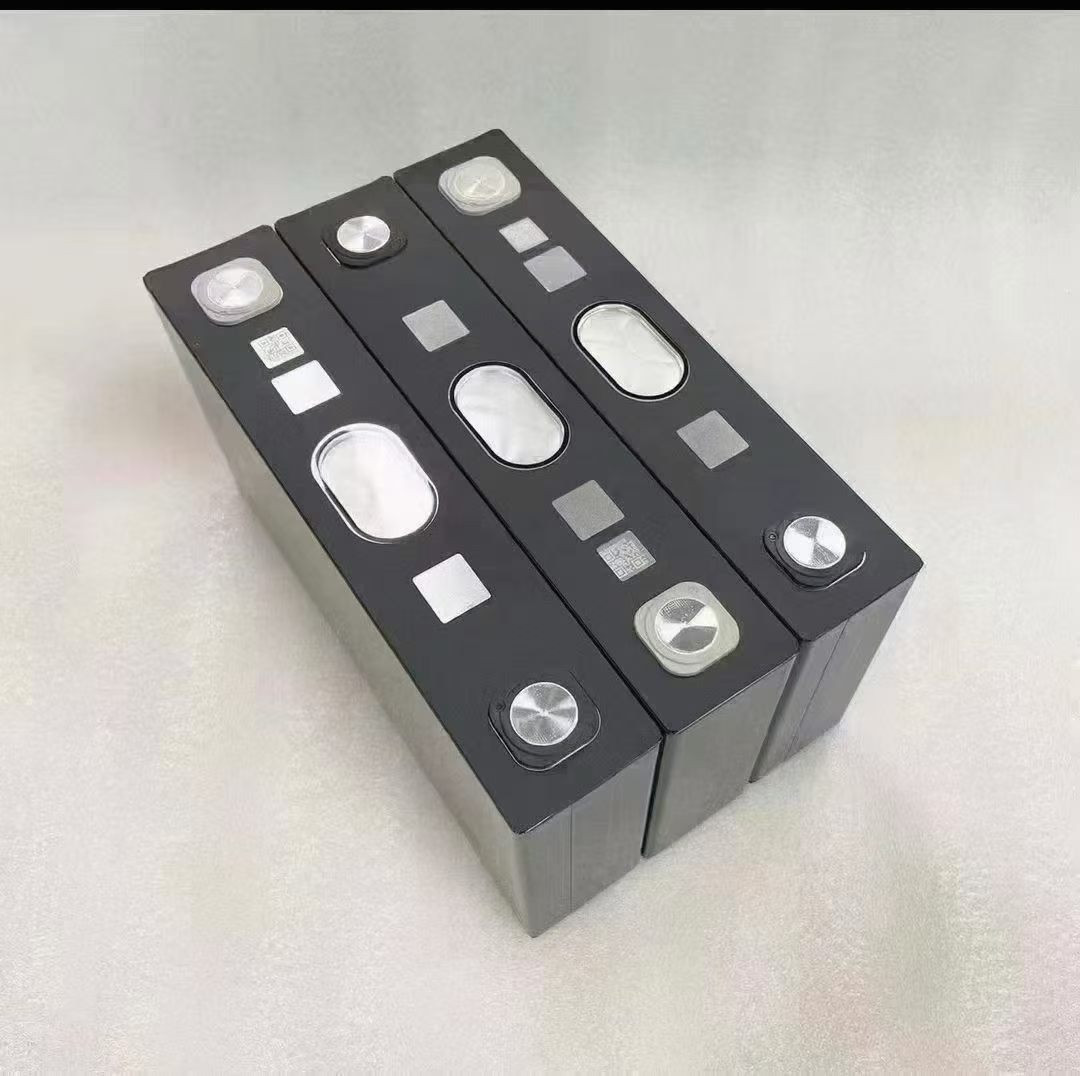

Request quote & specifications Prismatic cells Product appearance reference PRISMATIC FORMAT 58Ah prismatic ternary cell Ternary lithium Capacity reference 58Ah Dimensions · source order 148.20 (−0.20, +0.40) × 26.72 ± 0.20 × 95.21 ± 0.30 mm Weight 860 ± 15 g Model reference M21 Confirm voltage & request quote Product appearance reference PRISMATIC FORMAT 127.9Ah prismatic ternary cell Ternary lithium Capacity reference 127.9Ah Voltage 3.7 V Dimensions · source order 30 × 265 × 92 mmincluding terminal posts Weight 1.7 kg Request quote & specifications Product appearance reference PRISMATIC FORMAT 135Ah prismatic ternary cell Ternary lithium Capacity reference 135Ah Dimensions · source order 52 × 148 × 105 mmincluding terminal tabs Confirm voltage & request quote Product appearance reference PRISMATIC FORMAT 169Ah prismatic ternary cell Ternary lithium Capacity reference 169Ah Voltage 3.6 V Dimensions · source order 44 × 220 × 109 (112) mm Weight 2.55 kg Request quote & specifications Product appearance reference PRISMATIC FORMAT 173Ah prismatic ternary cell Ternary lithium Capacity reference 173Ah Voltage 3.7 V Dimensions · source order 45 × 220 × 110 mm Request quote & specifications Product appearance reference PRISMATIC FORMAT 246Ah prismatic ternary cell Ternary lithium Capacity reference 246Ah Voltage 3.7 V Dimensions · source order 67 × 220 × 110 mm Request quote & specifications
